Builds on #94 (Nodes "Show more"), and includes its commit until that one is merged: both change the node card's buttons and template. Only the last commit is this change.

Problem

"Check connection" on a node tells whether its panel answers, but not how the way to it behaves: its latency, jitter and loss.

Change

• Endpoint GET nodes/<id>/icmp/ (nodes_api.py, super admins):
  • one ICMP echo from this panel to the node's address, the host from its link (a name resolved, IPv4 first);
  • when ICMP is not possible, the time of a TCP connect to the node's panel port, and method says which.
• Button and panel (NodesView.vue, new components/NodePingPanel.vue): a "Ping" button next to "Open" opens a panel over that card, under the node's icon, flag and name.
  • It asks once a second until it is closed (✕, Esc, or the button again).
  • It shows the latest time (coloured), min / avg / max / loss, a bar per answer and the last 5 lines.
  • Each card has its own panel, so several nodes can be pinged at once.
  • The panel keeps its own height, whatever the card shows.
  • A long address (IPv6) ends in "…".
• Buttons: labels never wrap ("ورود به نود" broke into three lines beside "Ping"). The row wraps instead, with delete at its end.
• Strings in all 7 languages.

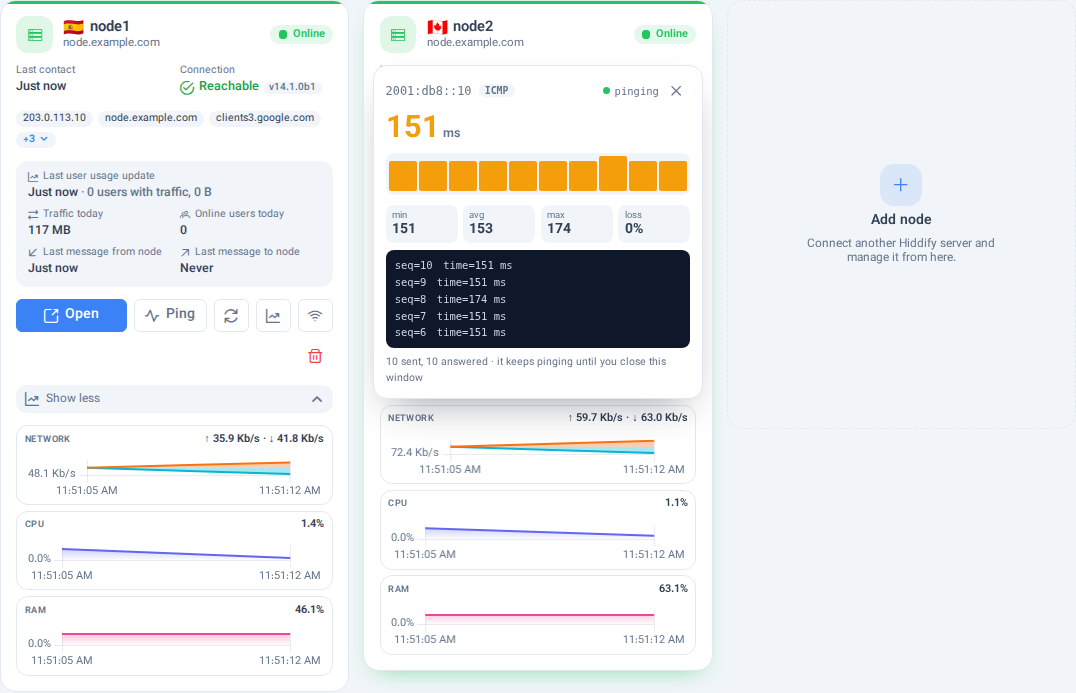

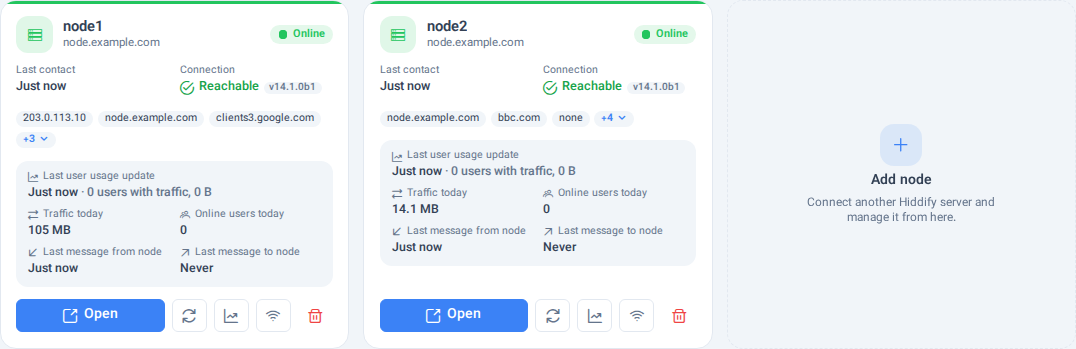

Screenshots

Before	After

Tested

• On main (a parent with two nodes, panel restart):
  • real ICMP as the panel's service user, about 50 ms to one node and 151 ms over IPv6 to the other;
  • both panels running at once;
  • the panel keeps its height on a card with its charts open;
  • the ✕ stays inside and the IPv6 address is cut with "…";
  • an unknown node answers 404.
• Shown on desktop, dark, mobile and Persian RTL.

Review

• Confidence: High (>90%) — the endpoint only runs ping -c 1 (an argument list, no shell) to the stored node's address. Tested on main.
• Complexity: Simple — one endpoint and one panel.
