fix: ignore a system bar hidden through the system UI visibility on Android 6-10 - #785

Open
YevheniiKotyrlo wants to merge 2 commits into
appandflow:mainfrom
YevheniiKotyrlo:fix/android-hidden-bar-insets
Open

YevheniiKotyrlo wants to merge 2 commits into
appandflow:mainfrom
YevheniiKotyrlo:fix/android-hidden-bar-insets

Conversation

@YevheniiKotyrlo

@YevheniiKotyrlo YevheniiKotyrlo commented Oct 14, 2026 •

Copy link
Copy Markdown

Summary

On Android 6–10, a status bar hidden through View.SYSTEM_UI_FLAG_FULLSCREEN still counts as the top inset. That is what WindowInsetsControllerCompat.hide(statusBars()) sets below API 30, and so what React Native's StatusBar.setHidden(true) does in an edge-to-edge app. The edge-to-edge layout sets SYSTEM_UI_FLAG_LAYOUT_STABLE, under which the system window insets keep a hidden bar's size, and getRootWindowInsetsCompatM reads systemWindowInsetTop. So SafeAreaView and useSafeAreaInsets() reserve a band no bar covers. From API 30, getInsets(statusBars() | displayCutout() | …) already excludes a hidden bar. A navigation bar hidden through SYSTEM_UI_FLAG_HIDE_NAVIGATION has the same defect at the bottom (#63).

The API 23–29 path now reads rootView.windowSystemUiVisibility: a hidden status bar leaves the top to the display cutout's safe inset, and a hidden navigation bar leaves the sides and the bottom to it, matching the API 30 path. In split-screen and freeform mode the system keeps the bars visible whatever the app requested, so while a flag hides a bar the activity is asked whether it is in multi-window mode, and if it is the bars keep their insets. That question is a binder call, so an app hiding no bar never asks it. getSafeAreaInsets gains an overload taking the activity's context, which SafeAreaContextModule uses for the initial metrics, because a decor view's own context does not lead to the activity.

androidx core's WindowInsetsCompat reads the same flags below API 30 from 1.16.0 (androidx/androidx@deb2c56), but this library declares no androidx core version, so calling it would tie the result to whichever version an app resolves.

Test Plan

  • SafeAreaUtilsTest (Robolectric, API 29) covers a hidden status bar with and without a display cutout, a visible status bar, a hidden navigation bar, both bars hidden in multi-window mode, a decor view given its activity, and an app hiding no bar never asking about multi-window mode. On main the three hidden-bar cases fail, e.g. expected:<EdgeInsets(top=0.0, right=0.0, bottom=126.0, left=0.0)> but was:<EdgeInsets(top=96.0, right=0.0, bottom=126.0, left=0.0)>. It runs from the example app: cd example/android && ./gradlew :react-native-safe-area-context:testDebugUnitTest. The example's Jetifier skips bcprov-jdk18on, which Robolectric pulls and whose Java 25 classes Jetifier cannot read, and the package's files and scripts/check-package.mjs keep android/src/test out of the npm package.
  • On a stock Android 9 (API 28) emulator, a SafeAreaView under a hidden status bar reserves a 72 px band on 5.10.1 and none with this change; in split-screen, where the system keeps the status bar visible, the 72 px inset stays as on 5.10.1 (device evidence).
  • The JS job passes on Ubuntu (Node 22.13.0, npm 10.9.2), and the Android job's assembleDebug with -PnewArchEnabled=false and true passes on Ubuntu (JDK 17) and Windows.

…ndroid 6-10

On API 23-29 a bar hidden through SYSTEM_UI_FLAG_FULLSCREEN or
SYSTEM_UI_FLAG_HIDE_NAVIGATION keeps its system window inset under
SYSTEM_UI_FLAG_LAYOUT_STABLE, so a hidden status bar still counted as the
top inset and a hidden navigation bar as the bottom one. A hidden bar now
leaves only the display cutout, as getInsets does from API 30.
@vercel

vercel Bot commented Oct 14, 2026

Copy link
Copy Markdown

@YevheniiKotyrlo is attempting to deploy a commit to the appandflow Team on Vercel.

A member of the Team first needs to authorize it.

@YevheniiKotyrlo

YevheniiKotyrlo commented Oct 14, 2026 •

Copy link
Copy Markdown
Author

Device evidence — before / after

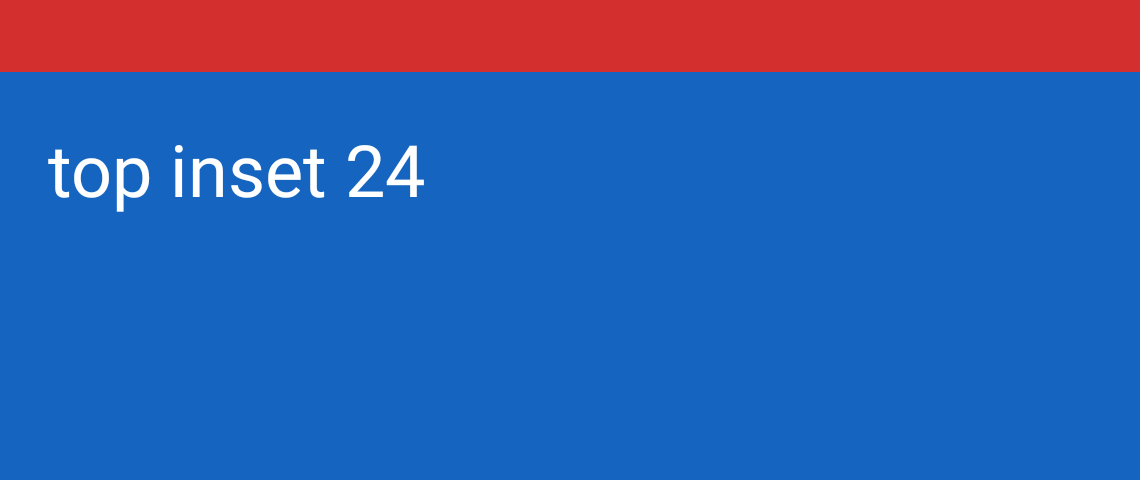

UNFIXED — With the status bar hidden, SafeAreaView still reserves the bar's 72 px at the top, and useSafeAreaInsets().top is 24.

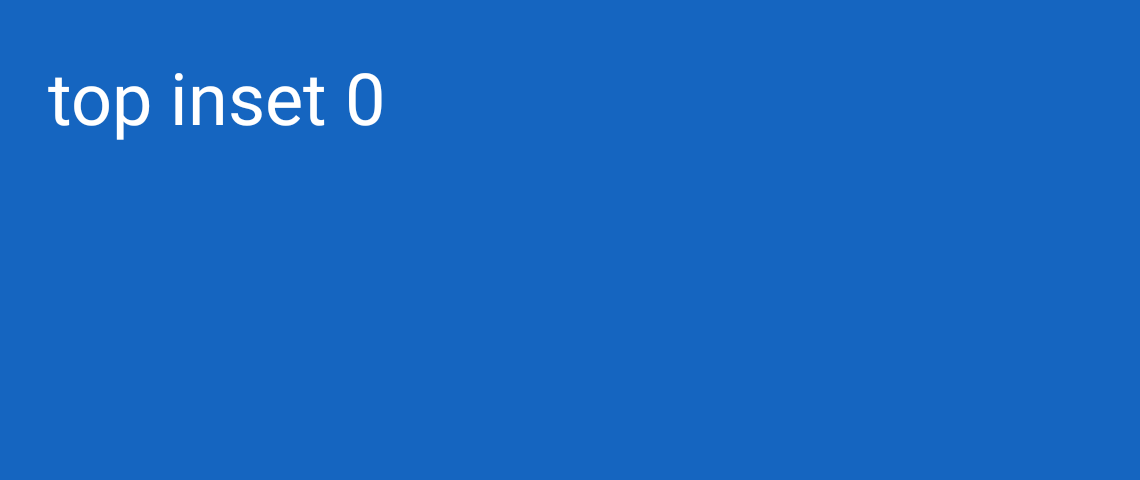

FIXED — The content starts at the top of the screen, and top is 0. In split-screen, where the system keeps the status bar visible, top stays 24 as on 5.10.1.

before — stock 5.10.1 after — with this PR
full screen

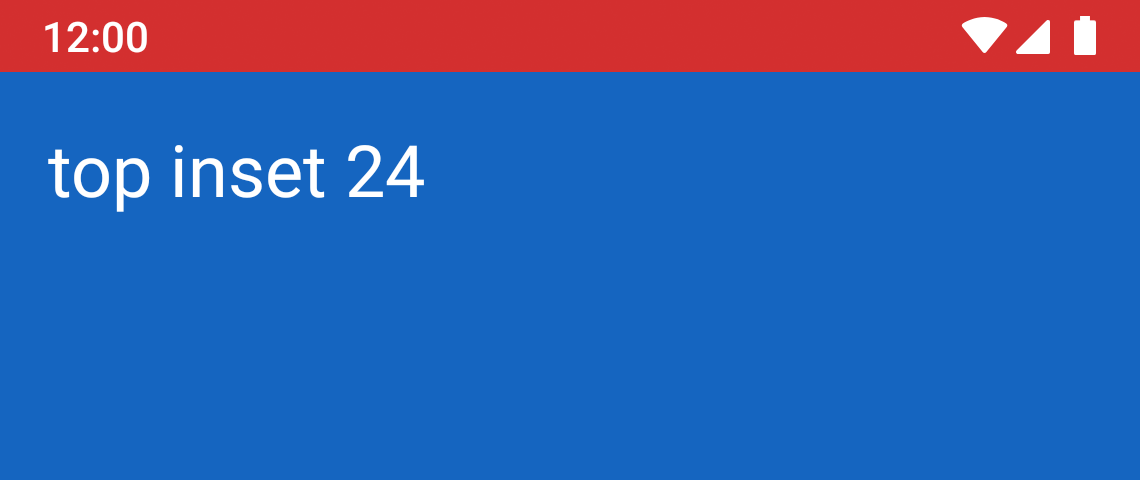

split-screen

Stock Android 9 (API 28) emulator, 1140x2400 at density 480. The scene is <StatusBar hidden /> over a red view holding a transparent SafeAreaView edges={['top']} with a blue view inside it, and it hides the status bar again whenever its window gains focus, since entering split-screen clears the flag. The example's host app turns on React Native's edge-to-edge mode in both builds (setEdgeToEdgeFeatureFlagOn() and WindowCompat.setDecorFitsSystemWindows(window, false)), as an edge-to-edge app does. In full screen the red band is 72 rows on 5.10.1 and 0 with this PR; in split-screen it is 72 rows under the status bar on both.

@YevheniiKotyrlo
YevheniiKotyrlo marked this pull request as ready for review October 14, 2026 11:36
@YevheniiKotyrlo
YevheniiKotyrlo marked this pull request as draft October 15, 2026 16:54
In split-screen and freeform mode Android 7-10 keeps the system bars
visible whatever the app requested, and Android 7-9 lays the app out under
them, so a status bar hidden through SYSTEM_UI_FLAG_FULLSCREEN still covers
the top of the window there. While a flag hides a bar, ask the activity
whether it is in multi-window mode, and keep the bars' insets when it is.
The question is a binder call, so an app hiding no bar never asks it.
@YevheniiKotyrlo
YevheniiKotyrlo marked this pull request as ready for review October 15, 2026 18:27
